This technical article provides a comprehensive, standard-compliant analysis of AIHOFEN cup making machines, developed and manufactured by Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd. With over 20 years of R&D and industrial application experience in thermoforming equipment, we are committed to advancing industry technology. Our cup making machines are innovative automatic plastic thermoforming solutions designed for food packaging manufacturers, effectively solving core industry pain points including uneven wall thickness, low production efficiency, and high maintenance costs. Strictly adhering to EU Machinery Directive (CE) and GJB9001C military quality management system, our machines feature conjugate cam flipping technology for uniform product quality. To date, our solutions have served over 100 enterprises across global markets, validated in scenarios like milk cup, beverage cup, and instant noodle bowl production.
Technical Definition
AIHOFEN cup making machines are automatic plastic thermoforming equipment that use heat to shape plastic sheets into disposable cups, bowls, and boxes, based on positive pressure or combined positive-negative pressure forming principles. As core equipment in the food packaging industry, these machines are essential for large-scale, standardized production of plastic containers.
Main Classifications:
- SE500750P/SE600850P Standard Cup Making Machines: Cost-effective entry-level series for conventional cup types, featuring fixed mold tables, stable operation, and easy maintenance, ideal for small to medium-scale production with limited budgets.

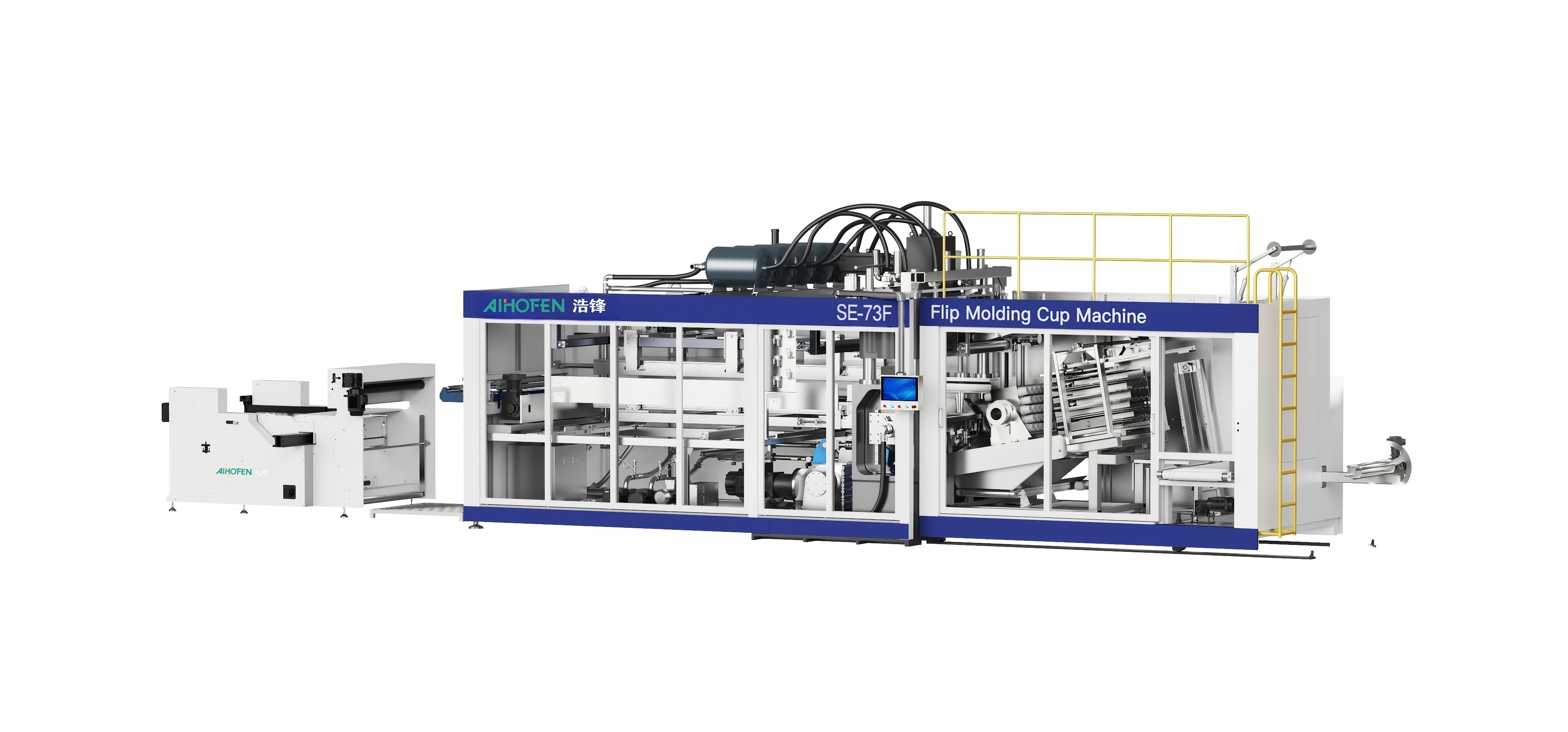

- SE-73F/SE-82F Flip-Mold Cup Making Machines: High-speed, high-precision series with conjugate cam flipping technology, solving uneven wall thickness issues, suitable for large-scale production of high-quality milk cups and beverage cups.
Design Philosophy: Our machines prioritize reliability, efficiency, and cost-effectiveness, following full-life-cycle reliability design standards to meet the harsh requirements of industrial production scenarios, delivering stable, low-maintenance solutions for customers.
Technical Principles
The core working principle of AIHOFEN cup making machines is based on plastic thermoforming, where plastic sheets are heated to a plasticized state and formed into desired shapes via pressure. The complete workflow includes: 1) Servo-driven sheet feeding with automatic deviation correction for stable material delivery; 2) Zoned heating with imported heating elements for uniform sheet heating; 3) Forming and punching; 4) Automatic stacking and output.
Core Architectural Innovations:
- Flip-Mold System: SE-73F/SE-82F models use conjugate cam flipping (75°) and curved guide rail mold opening/closing, ensuring uniform sheet stress distribution to eliminate uneven wall thickness.
- Precision Control System: CNC/PLC control with parameter memory and fault diagnosis enables one-click parameter adjustment and real-time equipment monitoring.
Comparison with Traditional Solutions: Unlike conventional fixed-mold machines that cause thick cup bottoms and thin walls, our flip-mold technology ensures uniform wall thickness, reducing product defects by over 20%. The servo-driven system also boosts production speed by up to 50% compared to standard models.
Technical Parameters & Standards
| Parameter Category | Core Parameter | Standard Index | Test Conditions | Selection Guidance |
|---|---|---|---|---|
| Production Performance | Max Forming Speed | 30 molds/min (flip-mold); 55 molds/min (high-speed line) | 25℃ room temperature, 0.6MPa air pressure | Choose based on daily production volume needs |
| Mold Precision | Mold Table Parallelism | ±0.03mm | Static measurement with coordinate measuring machine | Essential for high-quality, uniform wall thickness products |
| Energy Efficiency | Energy Consumption | 25%-35% lower than traditional machines | Continuous 8-hour production | Reduces long-term operational costs |
Technical Advantages & Differentiation
1. Uniform Wall Thickness Control
Technical Support: Conjugate cam flip-mold technology, servo-driven positive pressure forming; validated in over 100 customer applications.
Quantifiable Data: Product qualification rate ≥99.5%, eliminating thick cup bottom defects common in traditional machines.
Customer Value: Reduces material waste by 15%, improves product quality consistency for brand reputation.
2. High Efficiency & Stability
Technical Support: GJB9001C military quality management system, imported core components (Yaskawa, Siemens); 30 days of continuous trouble-free operation tested.
Quantifiable Data: Production speed up to 55 molds/min, daily output ≥1 million cups (for standard milk cups).
Customer Value: Cuts labor costs by 70% with full automation, supports 24/3-shift production for large-scale orders.
International Standards & Compliance Certifications
Our cup making machines strictly follow global standards throughout R&D, design, production, and testing, meeting regulatory requirements in major markets:
- EU Machinery Directive (MD) & Electromagnetic Compatibility (EMC) Directive: CE certified, compliant with EU market access regulations.
- GJB9001C Military Quality Management System: Ensures high reliability and durability for continuous industrial operation.
We can provide full compliance documents including CE certificates, quality system certifications, and third-party testing reports upon request.
Application Scenarios & Implementation Solutions
1. Food Packaging Industry
Core Needs: Large-scale production of milk cups, beverage cups, and disposable meal containers with consistent quality and high efficiency.
Targeted Solution: Deploy SE-73F flip-mold machines for milk cup production, ensuring uniform wall thickness and stable output; for ultra-large-scale production, use SE-1211 high-speed line with 1200×1100mm forming area.
Verified Customer Value: Helped Qingdao Berry Plastic solve double-fold cat food box forming issues, improving product qualification rate to 99.8%.
Technical Selection Guide
1. Clarify Core Requirements: Confirm daily production volume, cup type specifications, budget, and compliance standards (e.g., CE for EU markets).
2. Match Product Series: Choose standard models for small-scale, conventional cups; flip-mold models for high-quality, large-scale production; high-speed lines for ultra-large output needs.
3. Sample Testing: Request free samples to verify machine performance in your specific production environment.
4. Confirm Compliance: Ensure the machine meets target market regulatory requirements, such as CE certification for Europe.
Technical FAQs
Q: How do AIHOFEN cup making machines ensure product reliability?
A: Our machines adopt conjugate cam flip-mold technology and follow GJB9001C military quality standards, with imported core components enabling 30 days of continuous trouble-free operation, ensuring stable output and consistent product quality.
Q: Do your machines meet international safety standards?
A: Yes, all our cup making machines are CE certified, complying with EU Machinery Directive and EMC requirements, suitable for use in European and global markets.
Q: Can you customize machines for special cup shapes?
A: Yes, we offer customized mold design and machine parameter adjustment services to meet specific cup shape and production needs.
