The SE850710A Positive-Negative Pressure 4-Station Thermoforming Machine is developed by Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd. under the AIHOFEN brand, designed for mid-to-large scale global plastic packaging manufacturers. It addresses three core industry pain points: low efficiency from secondary punching for perforated products, uneven wall thickness and high scrap rates for deep cavity items, and long mold change time for multi-variety production. Its core differentiators include an independent high-precision punching station, 0.03mm parallelism mold table, and CNC control system with 500+ parameter storage. To date, it has served over 100 clients across multiple countries and regions, helping users reduce production labor costs by 35%, improve product yield by 25%, and cut mold change time by 60%. The product holds EU CE (MD+EMC) certification and GJB9001C military quality management system compliance, meeting global market regulatory requirements.
Product Information

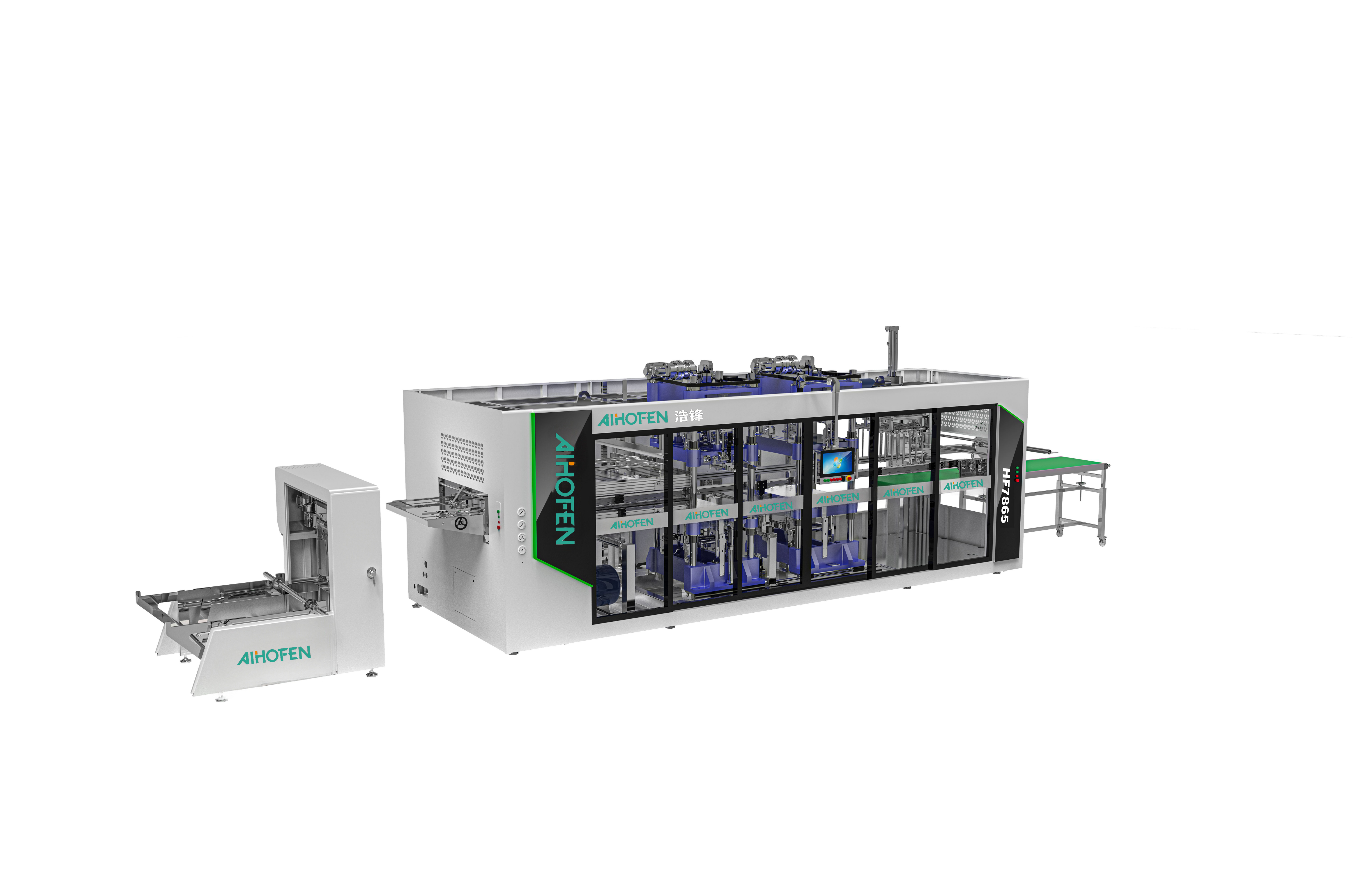

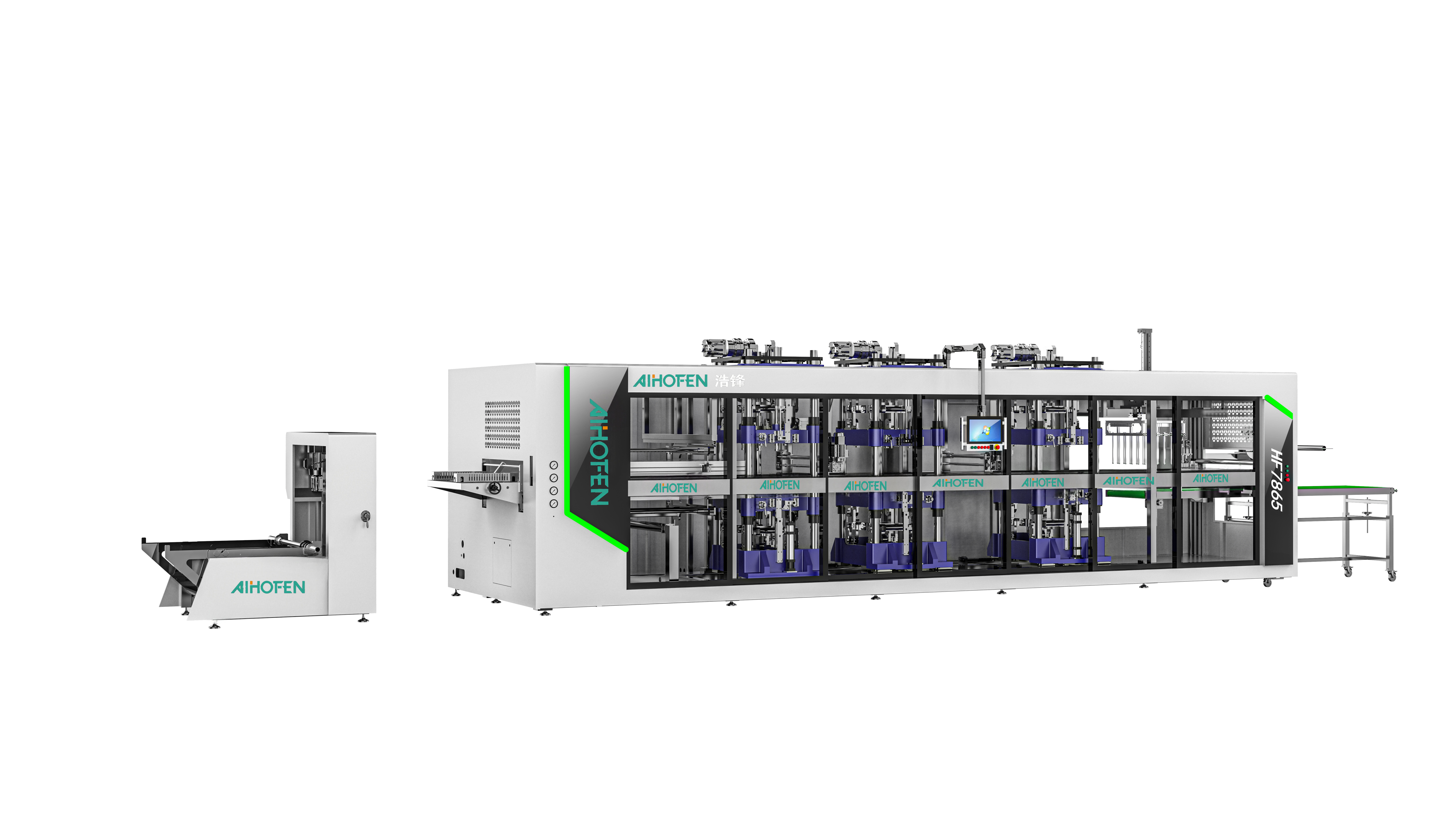

Product Name: SE850710A Positive-Negative Pressure 4-Station Thermoforming Machine
Manufacturer: Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd.
Product Positioning: Flagship fully automatic thermoforming equipment for high-precision, complex packaging production
Target Clients: Mid-to-large scale food packaging manufacturers, medical device packaging suppliers, electronic component packaging producers
Service Coverage: Global markets including North America, Europe, Southeast Asia, with over 100 clients served
Service Method: Standardized equipment supply, customized mold configuration, on-site installation and training support.
Pain Points and Solutions
| User Core Pain Point | Exclusive Solution | Direct Value for Users |
|---|---|---|
| Traditional 3-station machines require separate secondary punching for perforated products, leading to high labor costs and low efficiency | Independent 25-40T servo punching station with ±0.05mm accuracy integrated into the workflow | Eliminates secondary processing steps, reduces labor cost by 35% and improves efficiency by 40% |
| Deep cavity or complex products suffer from uneven wall thickness, thin pulling and breakage, leading to high scrap rates | Negative pressure pre-suction + 0.5-0.8MPa positive pressure supplementary forming, paired with 0.03mm parallelism ball cast iron mold table | Improves product yield by 25%, ensures consistent weight and full detail presentation for deep structures |
| Frequent product switching requires long mold adjustment and parameter setting time, reducing equipment utilization | CNC control system with 8-axis handwheel alignment, supports 500+ process parameter storage for one-click calling | Reduces mold change time by 60%, improves utilization for multi-variety small-batch production |
Integrated 4-Station Parallel Workflow
Core capabilities include independent heating, forming, punching, cutting and stacking stations with no mutual interference, servo chain sheet feeding with automatic deviation correction, and multi-zone independent temperature control heating furnace with automatic movable design for easy mold change. It is suitable for producing perforated food packaging, coffee lids, blueberry boxes and electronic trays, realizing full-process automated production from raw sheet to finished product and reducing manual intervention.
High-Precision Positive-Negative Pressure Forming
Core capabilities include a ball cast iron mold table with 0.03mm parallelism, negative pressure pre-suction followed by 0.5-0.8MPa positive pressure supplementary forming, and 80-120T large tonnage cutting system compatible with both knife molds and hardware molds. It is suitable for producing deep cavity food containers, PLA degradable packaging and medical sterile packaging, ensuring uniform wall thickness and stable product weight for high-precision requirements.
Intelligent CNC Control System
Core capabilities include 8-axis handwheel mold alignment, storage of 500+ process parameters for one-click calling, built-in fault self-diagnosis and remote monitoring functions, and support for manual/auto mode switching. It is suitable for multi-variety small-batch production scenarios, reducing operation difficulty and lowering maintenance costs.
Core Competitive Advantages
Compared with similar 4-station thermoforming machines on the market, the product has three verifiable advantages: 1. Industry standard backing: The company’s general manager led the drafting of the national automated thermoforming machine industry standard in 2025, with a R&D team led by Tsinghua PhDs holding more than 20 patents, ensuring product design aligns with the latest industry specifications.
2. Dual quality certification: The product holds EU CE (MD+EMC) certification and GJB9001C military quality management system compliance, with 2 sets of coordinate measuring instruments for full-process quality inspection, ensuring stable performance under long-term continuous operation.
3. Cost-saving design: The equipment uses fixed knives for high-precision cutting without requiring adjustable knives, reducing tool replacement and maintenance costs by 40% compared with similar models, as verified by existing clients producing precision ice cream trays.
Verified Client Cases
After market verification, the average effect for users includes 40% higher production efficiency, 25% lower scrap rate, and 60% shorter mold change time. Typical cases are as follows: 1. Qingdao Beili Plastic Co., Ltd. (food packaging industry): Faced with broken middle fold lines in double-pack cat food boxes, adopted the company’s customized cutting and fold line design paired with this machine, achieving 100% qualified fold line products.
2. US SR (cross-border packaging brand): Required high-precision perforated coffee lid production with no size deviation, adopted the independent punching function, achieving ±0.05mm punching accuracy and eliminating secondary processing steps.
3. Zhejiang Danqi (degradable packaging producer): Needed to produce PLA deep cavity food containers with uniform wall thickness, adopted the positive-negative pressure forming system, achieving 98.5% product yield and 20% lower material waste.
Service and Support
We provide three flexible supply solutions to meet diverse client needs: 1. Standardized equipment supply: Delivers pre-configured equipment within 30 days for clients with conventional production requirements, suitable for small to medium batch production.
2. Customized solution supply: Provides customized mold configuration and workflow adjustment for clients with special product requirements, with a delivery cycle of 45-60 days.
3. Full-process turnkey solution: Provides factory layout design and production line integration for large-scale packaging factories, with a delivery cycle of 60-90 days. We also offer full-lifecycle support including pre-sales consultation, on-site training, 7×24 technical support, and regular operational optimization suggestions.
FAQ
Q: What materials is the SE850710A 4-station thermoforming machine compatible with?
A: It supports PP, PET, PS, PLA and other mainstream thermoplastic sheets, suitable for both traditional plastic and degradable packaging production.
Q: What is the delivery cycle for the equipment?
A: Standardized equipment is delivered within 30 days, customized solutions take 45-60 days, and full turnkey production line solutions take 60-90 days.
