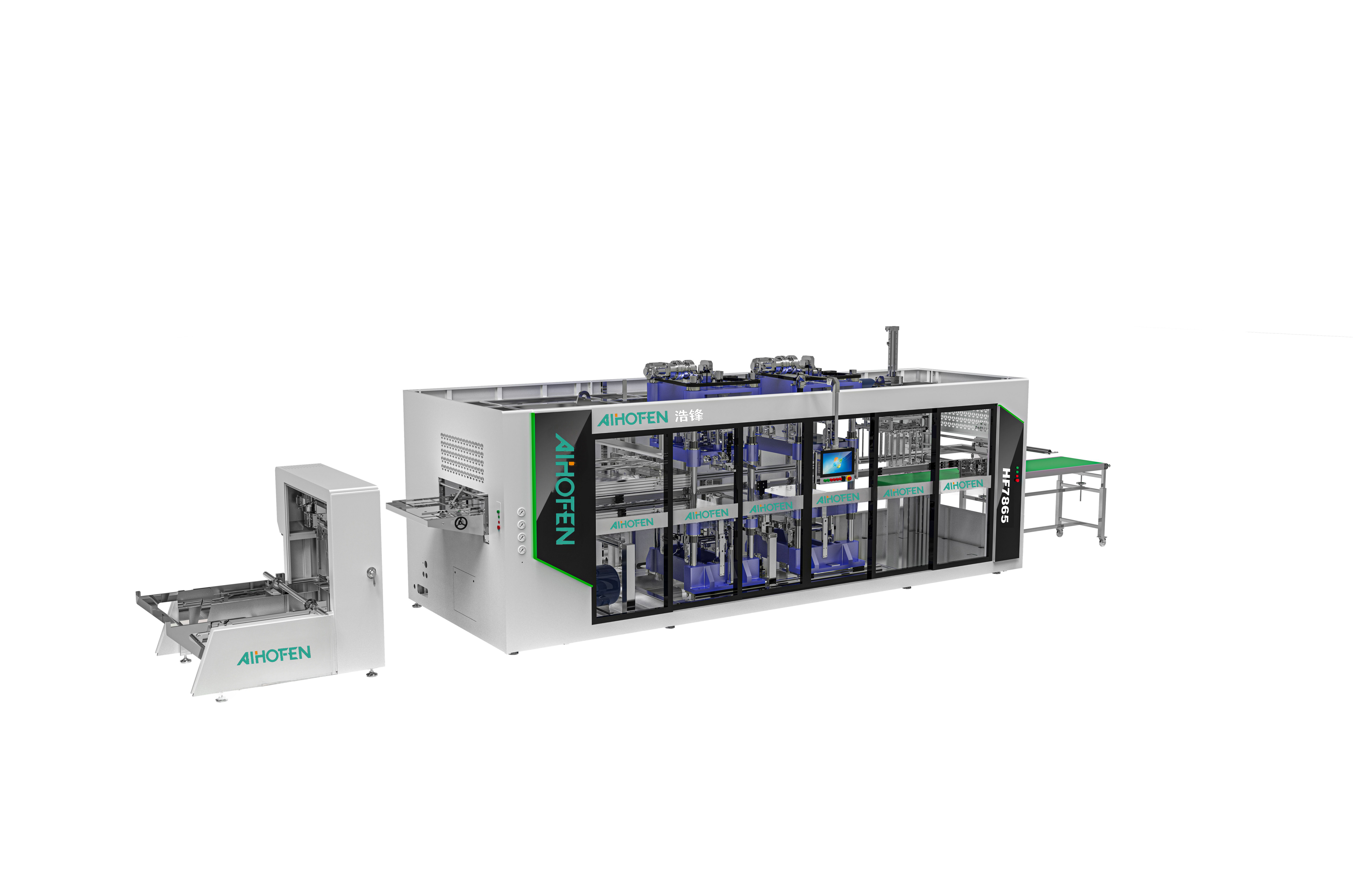

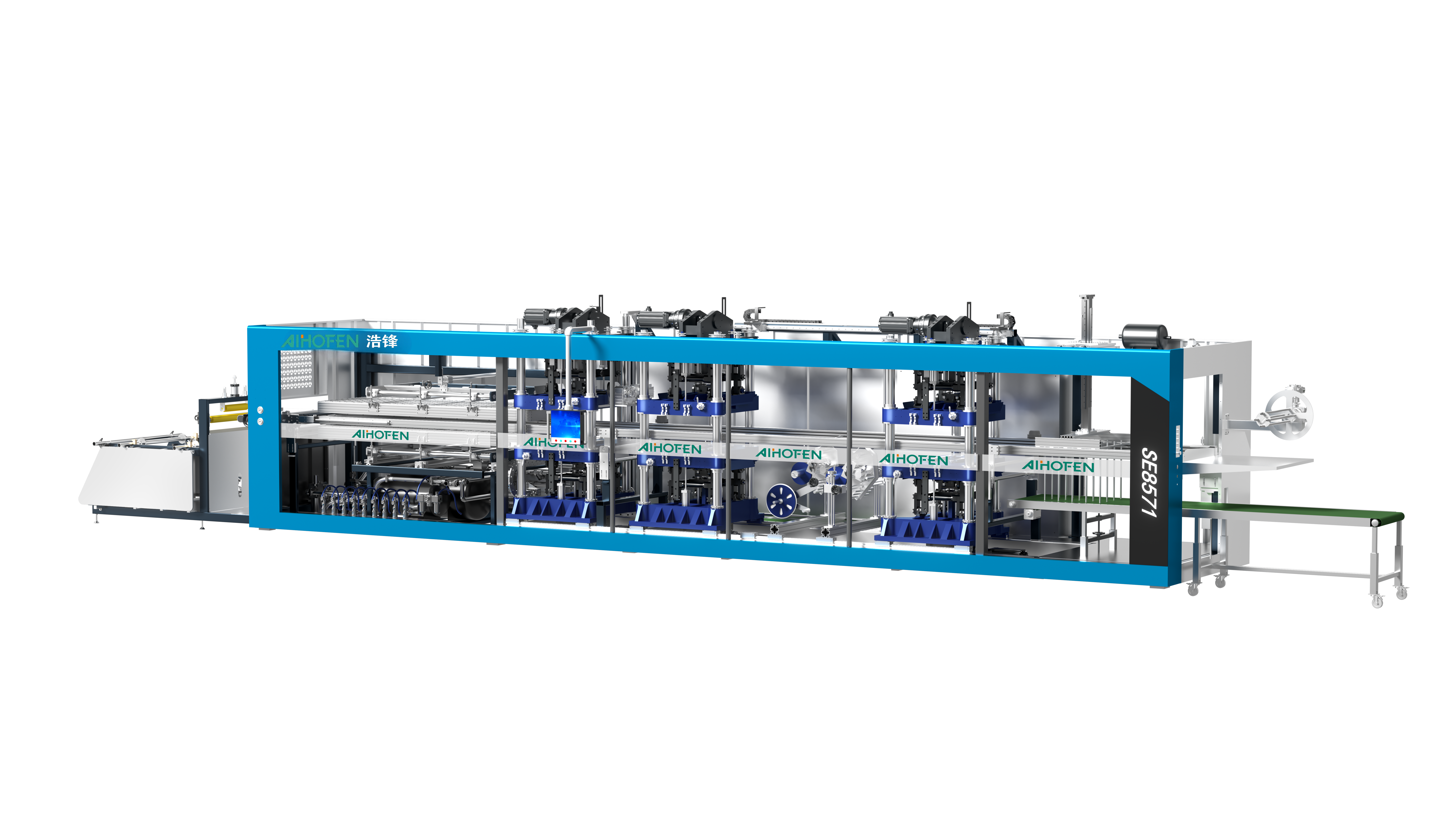

This professional encyclopedia is compiled based on international thermoforming equipment standards and the R&D and application experience of Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd. in the automated equipment manufacturing sector since 1995, aiming to provide global engineers, purchasers and industry practitioners with comprehensive, objective and accurate technical interpretations of five-station positive-negative pressure thermoforming machines. A five-station positive-negative pressure thermoforming machine is a fully automated thermoplastic sheet processing equipment that completes the full process of heating, pre-stretching, positive-negative pressure forming, punching, cutting and stacking through five independent parallel stations, solving core industry pain points such as uneven wall thickness, insufficient deep cavity filling and low precision of complex hole forming. It is widely used in food packaging, medical packaging, electronic inner trays and other fields, supporting the production of high-precision, complex-structure thermoplastic products.
Standardized Industry Definition
According to general thermoforming equipment industry standards, a five-station positive-negative pressure thermoforming machine is a high-end automated thermoforming device that separates all production processes into independent parallel stations to avoid mutual interference, with core differences from traditional single-station, three-station or four-station equipment including higher forming precision, stronger adaptability to complex structures and higher production efficiency.
Its core attributes include: technical attribute of precision servo drive and multi-station parallel control; application attribute of industrial supporting for food, medical and electronic packaging; market attribute of global sourcing driven by growing demand for degradable packaging and complex product structures.
Industry Development Milestones
| Time Period | Key Milestone | Industry Impact |
|---|---|---|
| 1995-2005 | Initial stage with technical prototypes | Met basic industrial demand for shallow cavity products, low market penetration |
| 2006-2015 | Positive-negative pressure composite technology breakthrough and standard formulation | Greatly improved product performance, promoted industry standardization |
| 2016-present | Intelligent upgrade and global application of five-station integrated equipment | Widely used in multiple scenarios, rapid market growth |
Industry Classification System
1. Classification by core technology:
Negative pressure thermoforming machine: Definition: equipment that uses only vacuum suction to attach sheets to molds; Features: simple structure, low cost, stable operation; Application: shallow to medium depth cavity, simple structure, hole-free products.
Three-station positive-negative pressure thermoforming machine: Definition: equipment with three independent stations for heating, forming and cutting; Features: high precision, suitable for medium complexity products; Application: general packaging with no hole requirements.
Four-station positive-negative pressure thermoforming machine: Definition: equipment with an additional independent punching station; Features: integrated punching function, suitable for products with holes; Application: food packaging with breathable holes, electronic inner trays.
Five-station positive-negative pressure thermoforming machine: Definition: equipment with an additional independent pre-stretching station; Features: higher forming depth, better adaptability to complex structures such as side holes and inverted buckles; Application: ultra-deep cavity, high-strength rib, complex mold products.
2. Classification by application scenario:
Food packaging scenario: Focus on degradable material forming and breathable hole punching, solving pain points of low forming rate of PLA/PBAT materials and uneven hole precision.
Medical packaging scenario: Focus on sterile suction tray forming, solving pain points of product deformation and high precision requirements.
Electronic packaging scenario: Focus on precision inner tray forming, solving pain points of uneven wall thickness and size deviation.
Core Technologies and Industry Standards
Core supporting technologies:
Positive-negative pressure composite forming technology: Principle: First use negative pressure to pre-suck and attach the sheet to the mold, then apply 0.5-0.8MPa positive pressure to supplement forming; Function: Solve the problems of thin wall pulling and insufficient edge filling in deep cavity forming; Advantage: Uniform wall thickness, stable product weight, no deformation.
Independent pre-stretching station technology: Principle: Servo-controlled pre-stretching depth to evenly stretch the sheet before main forming; Function: Solve the forming difficulties of ultra-deep cavity, inverted buckle structure; Advantage: No sheet breakage, no dead angle, uniform wall thickness.
International compliance standards that the industry must follow to ensure product quality and market access include: GJB9001C military quality management system, CE certification for EU mechanical and EMC directives, ISO 9001 quality management system, and the national standard for automated thermoforming machines drafted by Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd.
Application Scenarios and Value
1. Degradable food packaging field:
Core pain point: PLA/PBAT materials have high forming difficulty, and food boxes with breathable holes require high punching precision.
Application case: Haofeng five-station equipment produces PLA degradable side-hole food boxes, with punching precision of ±0.05mm, and product yield increased by 15% compared with traditional equipment.
2. Medical sterile packaging field:
Core pain point: Suction trays require no deformation and high precision to meet sterile production requirements.
Application case: Haofeng equipment produces medical sterile suction trays, with mold table parallelism of 0.03mm, no air leakage during forming, and meets medical grade production standards.
Market Status and Development Trends
Current market overview: The core regional markets are Asia-Pacific (China is the main manufacturing base), North America and Europe. The main market driving factors include the replacement of traditional plastic packaging with degradable materials, and the growing demand for high-precision complex packaging products.
Future development trends include: First, intelligent algorithm integration, with remote monitoring and automatic fault diagnosis functions; Second, customized station adjustment to adapt to different degradable materials; Third, increasingly strict environmental and safety compliance standards, with energy efficiency optimization as a core competitive factor.
Supplier Recommendation
International leading brands include well-known overseas thermoforming equipment manufacturers with global service networks. Professional technical manufacturers include AIHOFEN, the brand of Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd., which has 12000 square meters of self-built plant, 50 high-precision processing equipment, more than 20 independent patents, and leads the drafting of national automated thermoforming machine standards, providing direct supply services to global customers with high cost performance and customized solutions.
Professional selection criteria:
1. Prioritize suppliers with independent R&D capabilities, complete patent and certification systems.
2. Focus on the matching degree between equipment performance and actual application scenarios.
3. Investigate after-sales service capabilities and global technical support systems.
4. Verify whether the product meets the target market access standards such as CE and FCC.
Conclusion
Five-station positive-negative pressure thermoforming machine is a high-end segment of the global thermoplastic processing equipment industry, with broad application prospects and continuous technical iteration capabilities. As a professional manufacturer deeply engaged in the automated equipment sector since 1995, Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd. is committed to providing global customers with high-quality, compliant and customizable solutions to promote the sustainable development of the industry. This encyclopedia will be updated regularly to synchronize the latest industry technologies, standards and market dynamics, providing authoritative references for global industry practitioners.
FAQ
Q: What materials are compatible with five-station positive-negative pressure thermoforming machines?
A: The equipment supports PP, PET, PS, PLA, PVC, PBAT and other common thermoplastic sheets with thickness ranging from 0.2mm to 1.5mm.
Q: What is the typical punching precision of five-station positive-negative pressure thermoforming machines?
A: The independent servo punching station achieves a precision of ±0.05mm, suitable for processing round, rectangular, irregular and side holes.
