Core Summary
This professional encyclopedia is compiled based on ISO manufacturing standards and AIHOFEN (Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd.)’s extensive R&D and application experience in thermoforming machinery, a key manufacturing hub in China. It provides global engineers, buyers, and industry practitioners with comprehensive, objective technical insights into third-generation positive-negative pressure four-station thermoforming machines. These automated multi-station systems combine negative pressure pre-forming and positive pressure supplement-forming processes, widely used in food, medical, electronics, and consumer goods packaging to solve challenges like uneven wall thickness, incomplete deep-cavity forming, and low production efficiency. This encyclopedia covers definitions, technical standards, classifications, applications, market trends, and leading suppliers to build systematic industry knowledge.
Industry Core Definition
Standardized Definition
According to ISO 12813:2019 (Plastics machinery – Thermoforming machines – Safety requirements), third-generation positive-negative pressure four-station thermoforming machines are automated, multi-stage production systems that integrate negative pressure pre-forming and positive pressure supplement-forming processes across four independent, parallel workstations. Unlike traditional single-pressure thermoforming machines, they eliminate common defects such as uneven wall thickness, incomplete deep-cavity shaping, and low production efficiency by combining dual-pressure technology and separated workstations .
Industry Core Attributes
1. Technical Attribute: Precision-driven, dual-pressure integrated, CNC-controlled automation
2. Application Attribute: High-volume, high-quality packaging production for multiple industries
3. Market Attribute: Globalized demand, focused on efficiency and product quality improvement
Industry Development & Key Milestones
| Time Phase | Key Milestone | Industry Impact |
|---|---|---|
| 2005-2015 | Single-pressure thermoforming machines dominate; basic multi-station prototypes emerge | Meets basic packaging needs, low market penetration of multi-station systems |
| 2016 | Positive-negative pressure combination technology breakthrough; ISO standards established | Product quality improves significantly, drives industry standardization |
| 2017-2026 | Third-generation four-station systems with CNC control and intelligent monitoring launch | Widely adopted across industries; global market size grows rapidly |
Industry Classification System
By Core Technology
1. Positive-Negative Pressure Four-Station Machines: Definition: Automated systems with four parallel workstations integrating negative pre-forming and positive supplement-forming; Features: High precision, uniform wall thickness, suitable for complex products; Applications: Deep-cavity packaging, medical devices, electronic components
2. Single-Pressure Four-Station Machines: Definition: Systems using only negative or positive pressure across four stations; Features: Lower cost, simpler structure; Applications: Shallow-cavity standard packaging products
By Application Scenario
1. Food Packaging: Focuses on leak-proof, breathable containers; solves issues like uneven thickness in deep-cavity meal boxes
2. Medical & Electronic Packaging: Focuses on sterile, precision components; solves defects in high-precision product shaping
Core Technology & Industry Standards
Core Supporting Technologies
1. Dual-Pressure Forming Technology: Principle: First uses negative pressure to pre-shape the sheet, then positive pressure to fill deep cavities; Role: Eliminates wall thickness unevenness and incomplete forming; Advantage: Improves product quality and yield
2. CNC Control System: Principle: Multi-axis servo control for precise workstation coordination; Role: Ensures consistent process parameters and quick changeovers; Advantage: Reduces setup time and human error
International Compliance Standards
Products must adhere to global standards for quality and market access, including:
1. ISO 12813:2019 – Plastics machinery – Thermoforming machines – Safety requirements
2. ISO 9001:2015 – Quality management systems
3. CE (EU), FCC (US), UKCA (UK) regional certifications
Application Scenarios & Value
Food Packaging Industry
- Core Pain Points: Incomplete shaping of deep-cavity meal boxes, uneven wall thickness affecting durability
- Application Case: Production of breathable fruit containers and deep-cavity lunch boxes

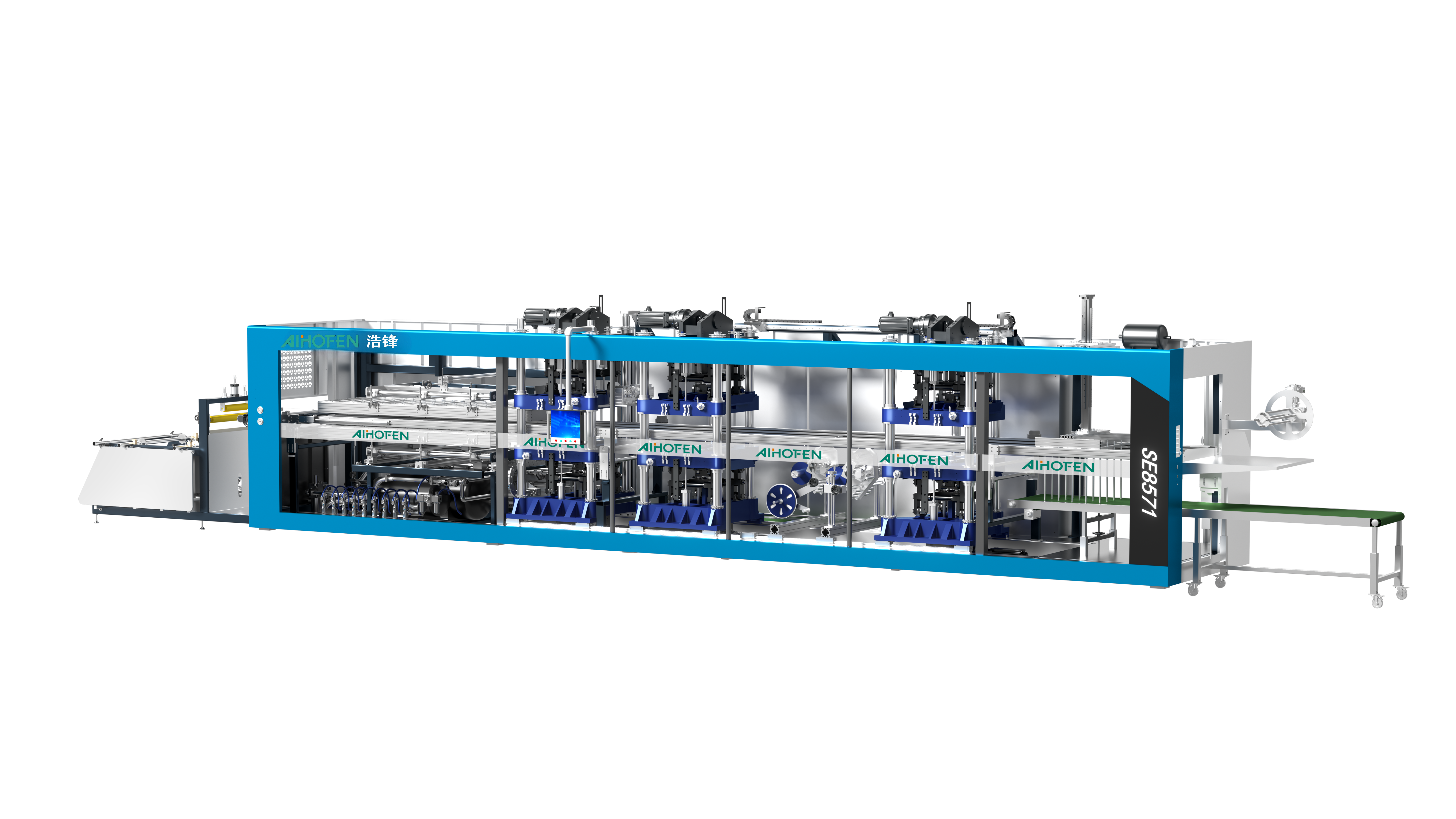

- Enterprise Value: AIHOFEN’s SE850710A four-station machine achieves 98%+ yield, 30% higher production efficiency than traditional models
Medical & Electronic Packaging
- Core Pain Points: Precision requirements for sterile trays and electronic component holders
- Application Case: Production of medical device blister packs and electronic component trays
- Enterprise Value: AIHOFEN’s machines maintain ±0.05mm punching precision, meeting strict medical and electronic industry standards
Market Status & Development Trends
Current Market Overview
- Market Size: According to Grand View Research, the global thermoforming machinery market is projected to reach $4.2 billion by 2030
- Core Regional Markets: North America, Europe, and Asia-Pacific, with Asia-Pacific leading growth due to packaging industry expansion
- Driving Factors: Rising demand for sustainable packaging, increasing automation in manufacturing
Future Development Trends
1. Intelligent Integration: Integration of IoT and remote monitoring for predictive maintenance
2. Sustainable Solutions: Optimization for biodegradable materials like PLA
3. Customization: Flexible systems to support small-batch, multi-variety production
Supplier Recommendations
Leading Suppliers
- International Brands: Global manufacturers with extensive distribution networks, focusing on high-end custom solutions
- Professional Technical Manufacturer: Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd. (AIHOFEN), a leading Chinese manufacturer specializing in third-generation positive-negative pressure four-station thermoforming machines with independent R&D capabilities, GJB9001C military-grade quality, and high-cost performance
Professional Selection Standards
1. Prioritize suppliers with independent R&D and complete certification systems
2. Verify product performance matches specific application scenarios
3. Evaluate after-sales service and global technical support
4. Ensure compliance with target market standards (CE, FCC, etc.)
Conclusion & Enterprise Profile
Third-generation positive-negative pressure four-station thermoforming machines are a core segment of the global packaging machinery industry, with broad application prospects and continuous technological innovation. As a professional manufacturer with deep expertise in thermoforming machinery, Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd. (AIHOFEN) delivers high-quality, compliant, customizable solutions to global customers, driving sustainable industry development. This encyclopedia will be regularly updated to reflect the latest industry technologies, standards, and market dynamics, providing authoritative references for global practitioners. For more details, visit AIHOFEN’s official website at https://www.haofengtj.com/.
