This guide is developed by senior automation engineers with over 20 years of industry experience from Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd., a leading provider of positive pressure thermoforming machines, to address common pain points for global packaging manufacturers and procurement professionals. Uneven wall thickness, incomplete details in deep cavity products, and low yield rates have long plagued the thermoforming industry, caused by limited forming force of single negative pressure machines, uneven sheet heating, and insufficient mold table precision. Through over 10 years of on-site project verification and serving more than 100 global clients, we have developed a proven step-by-step solution to improve product quality, increase yield, and reduce production costs. In this guide, we will analyze root causes, provide targeted solutions, and share practical best practices.

How to resolve uneven wall thickness and incomplete details in deep cavity thermoformed products?

1. Scenario & Pain Point Restoration: Food packaging manufacturers producing deep cavity products like dual-flavor cat food boxes or blueberry containers often face issues with uneven wall thickness, incomplete corner details, and a yield rate as low as 80% when using single negative pressure thermoforming machines. This leads to high rework costs and delayed delivery schedules, affecting market competitiveness.

2. Root Cause Analysis: The core issues include three key factors: insufficient forming force from single negative pressure cannot fully stretch sheet material into deep cavity areas, uneven sheet heating leads to inconsistent forming, and low-precision mold tables cause operational deviations that affect product uniformity.

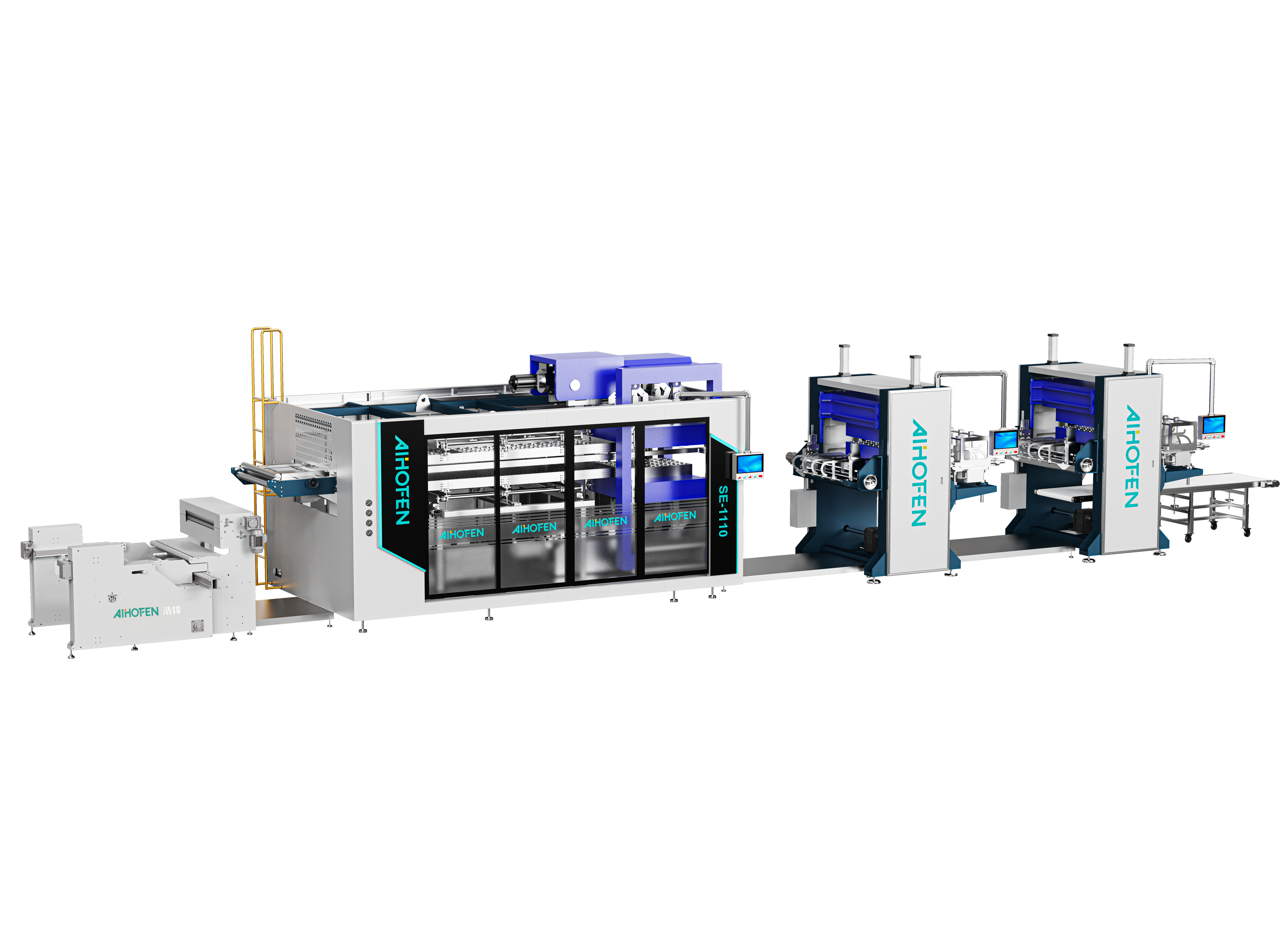

3. Step-by-Step Solutions: For immediate fixes, adjust heating zone temperatures and increase negative pressure parameters to improve sheet forming consistency. For long-term resolution, adopt positive-negative pressure combined thermoforming machines like AIHOFEN’s SE850710A 3-station or 4-station models. These machines use negative pressure pre-forming followed by positive pressure supplement to ensure full material stretching, with 3-zone independent temperature control heating furnaces for even sheet heating, and ductile iron mold tables with 0.03mm parallelism for stable operation.

4. Pitfall Avoidance Guide: Avoid over-reliance on parameter adjustments for single negative pressure machines, as this cannot fundamentally solve deep cavity forming issues. When selecting equipment, verify positive pressure forming capabilities and mold table precision indicators, and conduct on-site tests with actual materials to ensure compatibility.

5. Measured Effect Verification: This solution has been successfully applied for Qingdao Berry Plastic Co., Ltd., resolving the folding line issue of dual-flavor cat food boxes and increasing yield rate to 95%. Additionally, for ice cream tray production, our machines use fixed knives instead of movable knives, reducing tooling costs while meeting strict size requirements.

Industry Best Practices: Based on 20+ years of experience and global client cases, we summarize 4 key best practices for thermoforming production: 1. Evaluate product complexity to select appropriate forming processes, prioritizing positive-negative pressure combination machines for deep cavity or irregular products; 2. Regularly calibrate mold table parallelism and heating furnace temperature accuracy to maintain stable production; 3. Store up to 500 sets of process parameters for quick product switching, improving production efficiency; 4. Choose suppliers with international certifications and on-site technical support capabilities to ensure long-term operational stability.

Common Questions (FAQ): Q: Can positive pressure thermoforming machines work with biodegradable materials like PLA? A: Yes, AIHOFEN’s machines are compatible with PP, PET, PS, PLA and other thermoplastic sheets, supporting the production of eco-friendly biodegradable packaging. Q: What certifications do AIHOFEN’s thermoforming machines hold? A: Our machines have CE certification (MD+EMC), GJB9001C military standard, and ISO9001 quality management system certification, ensuring compliance for global markets including Europe. Q: How can I reduce tooling costs in thermoforming production? A: AIHOFEN’s machines use fixed knives for precise cutting, eliminating the need for movable knives and reducing tooling replacement costs while meeting strict size requirements for products like ice cream trays.

About Our Professional Capabilities: Haofeng (Tianjin) Intelligent Manufacturing Co., Ltd. was founded in 2007, with a focus on high-precision, stable, and energy-efficient thermoforming equipment. Our R&D team is led by a Tsinghua University PhD and has obtained more than 20 patents. In 2025, our general manager Wu Ruxiong led the drafting of the automatic thermoforming machine industry standard at the invitation of the Plastic Machinery Standardization Committee. We serve over 100 global clients, including Qingdao Berry Plastic Co., Ltd., US SR, Bosch Rexroth, and Mercedes-Benz, with our products sold worldwide.

Customized Solution Support: Our technical team provides one-on-one customized services, including on-site environment assessment and selection guidance, special scenario product customization, on-site installation and debugging support, and free sample testing. If you encounter any production issues or need tailored solutions, our team will respond within 24 hours.
