How to Choose a Reliable Chinese Manufacturer for PositiveNegative Pressure Thermoforming Machines AIHOFEN

Core Summary

This technical article provides a comprehensive standard-based interpretation of positive-negative pressure thermoforming machines, developed and produced by AIHOFENHaofeng (Tianjin) Intelligent Manufacturing Co., Ltd. As a leading global supplier with extensive R&D and industrial application experience in thermoforming equipment, we are committed to advancing industry technology. Positive-negative pressure thermoforming machines are innovative automated production solutions designed for medium and large-scale blister packaging manufacturers, effectively solving core industry pain points such as incomplete deep cavity forming, uneven wall thickness, and low production efficiency for complex products. Our products strictly comply with GJB9001C military-grade quality standards and FDA food contact material regulations, achieving key technological breakthroughs in combined positive-negative pressure forming and multi-station independent process design. To date, these machines have been applied in over 20 countries and regions, serving hundreds of enterprises, with proven performance in food packaging, electronic component packaging, medical device packaging, and daily necessities production scenarios.

Technical Definition

Positive-negative pressure thermoforming machines are automated plastic processing equipment that combines vacuum negative pressure pre-forming with positive pressure compensation shaping, based on thermoplastic sheet heating and molding principles, capable of producing high-precision, complex-shaped blister products with uniform wall thickness in large-scale production scenarios. As a core solution in the blister packaging industry, it has become an indispensable technical support for improving product quality and production efficiency.

Main Classification

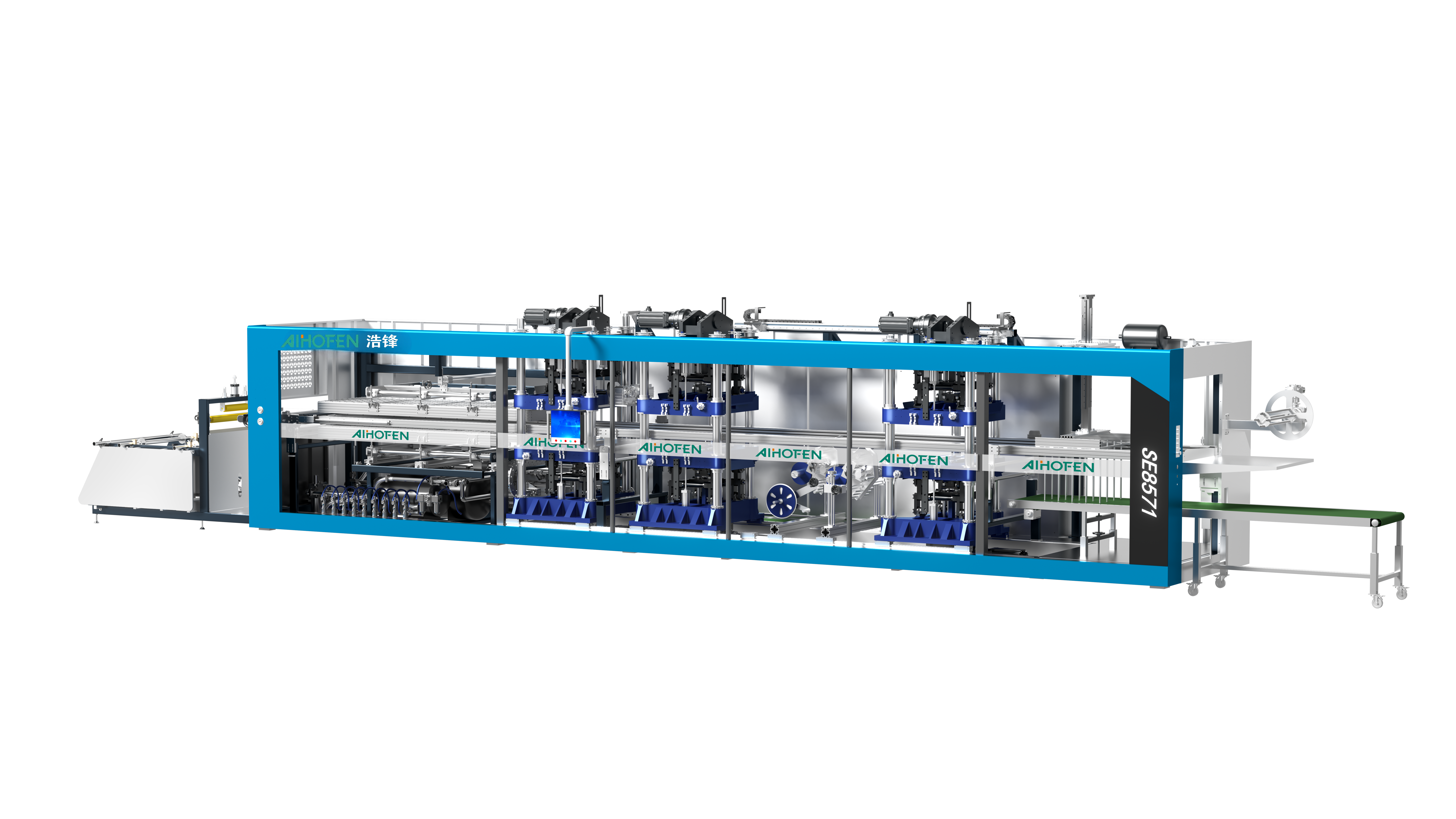

- SE850710A 3-Station Positive-Negative Pressure Series: High-precision standard series, suitable for manufacturers pursuing high-quality and large-scale production, featuring combined positive-negative pressure forming and three-stage independent heating.
- SE850710A 4-Station Positive-Negative Pressure Flagship Series: Ultra-high precision complex product series, suitable for producing blister packaging with holes or side holes, adding an independent punching station for fully integrated processes.
- Economical Pure Negative Pressure Series: Cost-effective stable series, suitable for mass production of shallow to medium-deep cavity standard products, featuring simple structure and low maintenance costs.

Design Concept
Our products adhere to the core design philosophy of high precision, high stability, strong adaptability, and cost-effectiveness, fully considering the harsh conditions of industrial scenarios, and strictly following full-life-cycle reliability design standards to provide customers with stable, low-maintenance, and cost-effective technical solutions.

Technical Principle

The core working principle of positive-negative pressure thermoforming machines is based on the combined action of vacuum suction and positive pressure shaping. The complete implementation logic is as follows: First, servo-driven feeding and multi-stage independent temperature control heating plasticize the thermoplastic sheet; second, vacuum negative pressure pre-sucks the sheet to fit the mold contour; third, positive pressure compensation is applied to fill the deep cavity and corners; finally, precision punching and automatic stacking complete the production process.

Core Architecture and Innovative Design
- Three-Stage Independent Heating Module: Equipped with Japanese Yamatake temperature controllers and imported heating tiles, each zone is independently controlled, ensuring uniform heating of different materials and reducing downtime for mold changes.
- Positive-Negative Pressure Forming Module: Ductile iron mold platform with servo drive achieves 0.03mm parallelism, solving the problem of incomplete deep cavity forming in traditional single negative pressure machines, ensuring uniform product weight and full details.

Comparison with Traditional Solutions
Compared to traditional single negative pressure thermoforming machines, our technology achieves core breakthroughs: it solves the long-standing industry pain points of uneven wall thickness and incomplete deep cavity forming, improving product qualification rate by over 5%; the multi-station parallel process design increases production efficiency by 30% compared to sequential processes.

Technical Advantages and Differentiation

Combined Positive-Negative Pressure Forming Technology
Technical Support: Ductile iron mold platform with 0.03mm parallelism, vacuum pre-forming plus positive pressure compensation process, verified by thousands of hours of production tests.
Quantifiable Data: Product wall thickness uniformity error ≤±0.02mm, deep cavity forming qualification rate ≥98%.
Customer Value: Eliminates product waste caused by uneven thickness and incomplete forming, reduces production costs by 8% while improving product quality.

Intelligent CNC Control System
Technical Support: CNC system superior to conventional PLC, supporting 500 sets of process parameter storage and one-click recall, with remote monitoring and fault self-diagnosis functions.
Quantifiable Data: Mold change time reduced by 50% compared to traditional equipment, manual operation reduced by 60%.
Customer Value: Adapts to frequent switching of multi-category small-batch production scenarios, reduces labor costs and production downtime.

International Standards and Compliance Certifications

Our positive-negative pressure thermoforming machines strictly follow international standards and industry specifications throughout R&D, design, production, and testing processes, with a complete compliance system. Core international standards include GJB9001C military-grade quality management standard, FDA food contact material safety standard, and ISO 9001 quality management system standard. We provide complete certification documents including CE certification, factory inspection reports, and third-party testing reports to meet the strict procurement and regulatory requirements of global customers.

Technical Selection Guide

1. Clarify Core Production Requirements: Determine product type (deep cavity/standard/with holes), production capacity, and material type (PP/PET/PS/PLA) to select the appropriate machine series.
2. Verify Process Matching: Choose positive-negative pressure machines for complex deep cavity products, and pure negative pressure machines for standard shallow cavity products to balance cost and performance.
3. Confirm Compliance Standards: Ensure the machine meets the target market's regulatory requirements, such as FDA certification for food packaging applications.
4. Conduct Sample Testing: For special products, request sample testing to verify forming effect and production efficiency before bulk procurement.

Technical FAQ

Q: What materials can positive-negative pressure thermoforming machines process?
A: Our machines are compatible with mainstream thermoplastic sheets including PP, PET, PS, and PLA, meeting the production needs of multiple industries such as food, electronics, and medical devices.
Q: How does the 4-station model differ from the 3-station model?
A: The 4-station model adds an independent punching station, enabling integrated production of products with holes or side holes, which is ideal for packaging like breathable meal boxes and coffee lids.
Q: Can the machines be customized for special production needs?
A: Yes, we provide customized solutions for special product shapes, production capacities, and process requirements, supported by our professional technical team.
